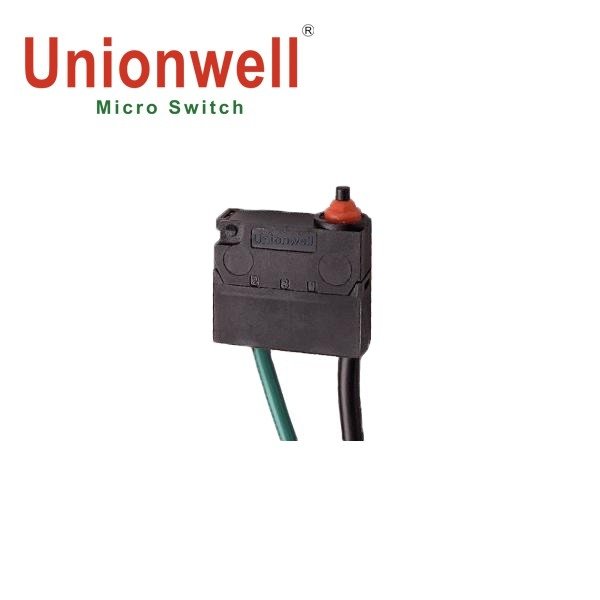

Product quick details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G303R-130E00B1-EC330-T171
Terminal: Molded Lead Wires Downwards
Circuit Code: SPST-NO
Lever Type: Pin Plunger
Product Parameters
Operating Frequency (Electrical): 0.1A-120 cycles/minute, 3A-10~30 cycles/minute
Operating Frequency (Mechanical): 120 cycles/minute
Contact Resistance (Initiative): 100mΩ Max (without wire type)
Insulation Resistance (at 500VDC): 100MΩ Min
Vibration Durability: 10~55Hz, move 0.75mm(p-p)
Dielectric Strength: 500VAC (50~60Hz)
Storage Temperature: – 40℃~+85℃
Storage Humidity: 85% RH Max
Service Life (Electrical): 6,000~500,000 cycles (Depend on part No.)
Service Life (Mechanical): Min. 500,000 cycles
