Sealed Subminiature Micro Switch PCB Terminals G905
-Model Number: G905-200P79D3-T001
-Terminal Type: Straight PCB Terminals
-Circuit code: SPST-NO
Share This Page
Unionwell brand stands at the forefront of electronic component innovation, showcasing its expertise with the Sealed Subminiature Micro Switch PCB Terminals. Engineered with precision and sealed for durability, these switches offer unparalleled performance in various applications. Designed to withstand challenging environments, Unionwell’s Sealed Subminiature Micro Switch PCB Terminals ensure reliable operation, making them ideal for automotive, aerospace, and industrial applications.
Products Quick Description
-Place of Origin: Guangdong, China (Mainland)
-Brand Name: Unionwell
-Model Number:G905-200P79D3-T001
-TerminalType : Straight PCB Terminals
-Circuit code:SPST-NO
-Lever Type: #79 lever
Parameters
| Rating | p1 | 0.1A 125/250VAC 48VDC/GoldPlated Contact Optional |
| 05 | UL:5A 125/250VAC
ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120 |
|
| Operating Frequency | Electrical | 10~30cycles/minute |
| Mechanical | 120cycles/minute | |
| Contact Resistance(Initiative) | 100mΩMax/It depends on the wire length for the type with wire | |
| Insulation Resistance (at 500VDC) | 100M Ω Min | |
| Dielectric Strength | AC1,000V RMS (50~60Hz) | |
| Storage Temperature | -25°C~+120°C | |
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | 10,000cycles/Depend on part No. |
| Mechanical | 500,000cycles | |
What is a microswitch?A micro switch is a get-in-touch-with system with a short call period, and a snap-action device utilizes a pointed-out movement and an indicated force to shift activity. It is dealt with through a layer and also possesses a riding pole outside of it, considering that the switch’s call distance is fairly small. Tiny, as a result, the title micro switch, also called a vulnerable button. The power message sign is SM.
Hot Tags: Micro Switch Basic 16A 250VAC, China, manufacturers, suppliers, factory, customized, cheap, low price, buy discount, free sample
Related Products
Related products
-

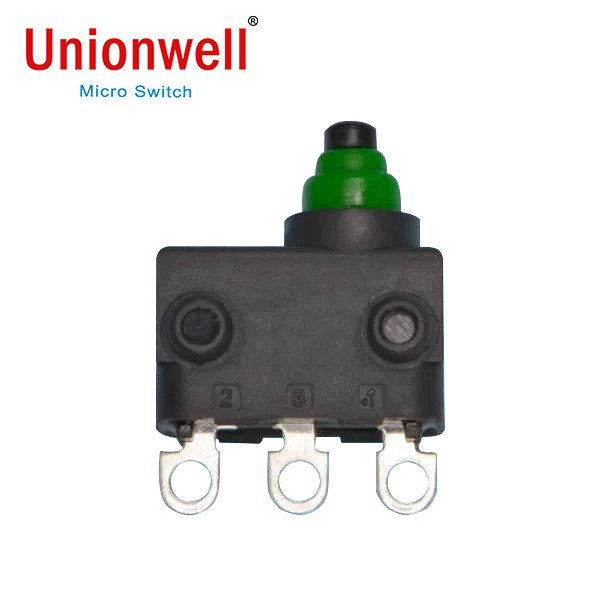

Subminiature Waterproof Micro Switch G3
Unionwell G3 Pin Plunger Short Solder Terminal Switch
-
Subminiature Waterproof Micro Switch G3

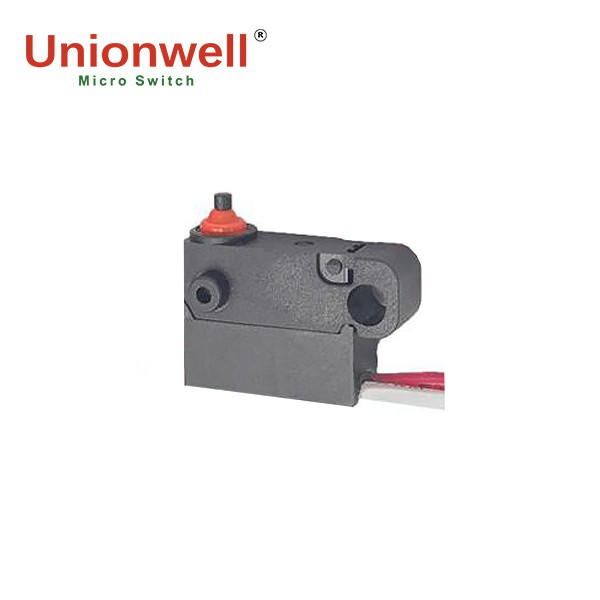

Unionwell G3 Waterprof Mini Sealsed Micro Switch
-
Subminiature Waterproof Micro Switch G3
Waterproof Micro Switch 130gf Limit Switch
-
Subminiature Waterproof Micro Switch G3

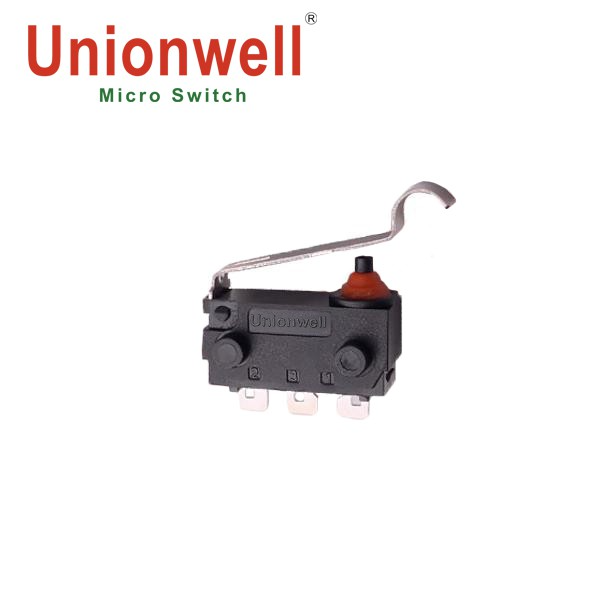

Subminiature Micro Switch IP67
-
Subminiature Waterproof Micro Switch G3

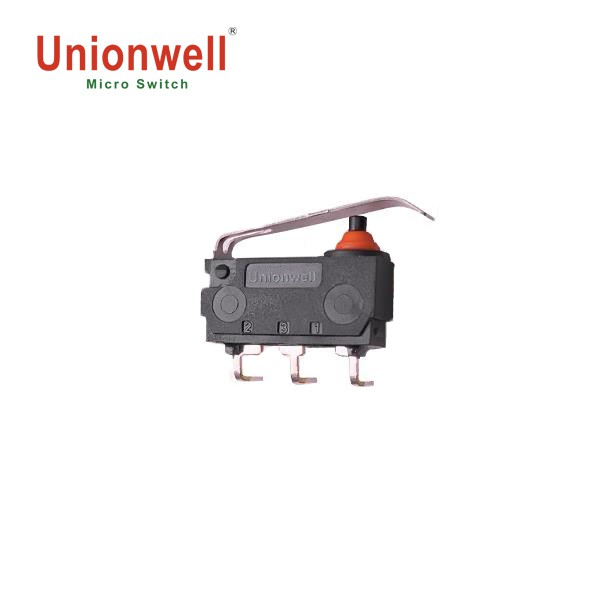

Subminiature Micro Switch SPDT With Lever
-
Subminiature Waterproof Micro Switch G3
Subminiature Micro Switch SPDT Simulated Roller Lever
-
Subminiature Waterproof Micro Switch G3
Subminiature Micro Switch 12V Wiring Terminals G303
-
Subminiature Waterproof Micro Switch G3

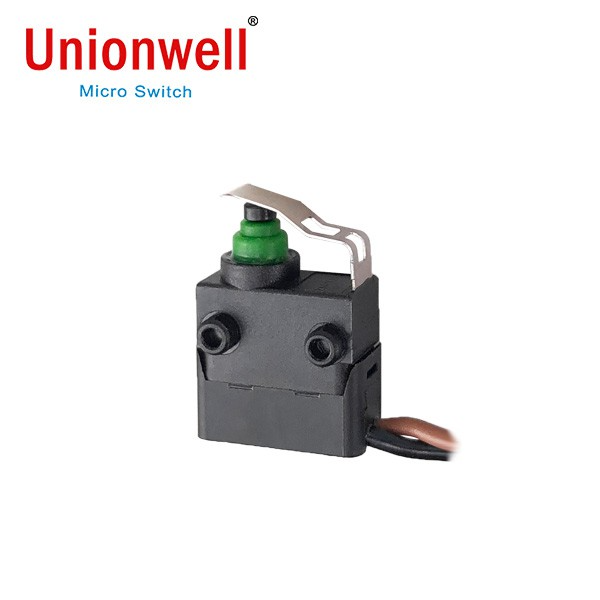

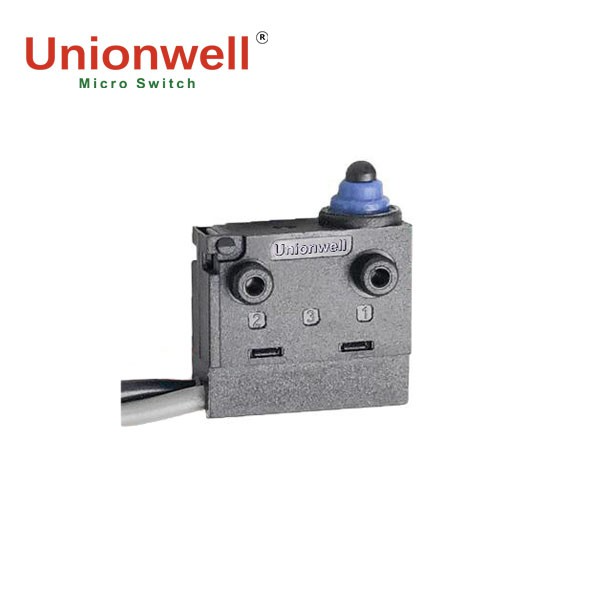

Unionwell G3 Wire Leads Waterproof Micro Switch
