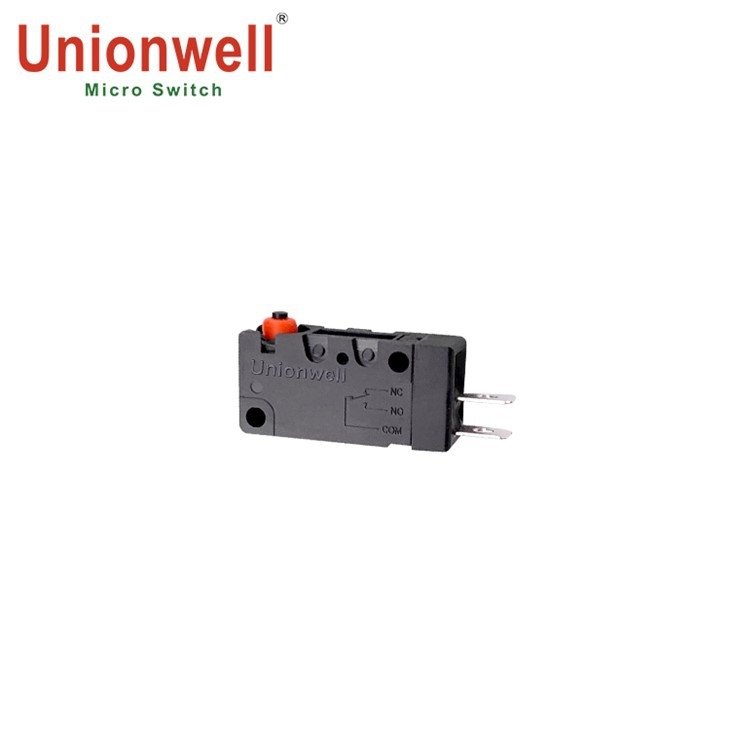

Brand Name: Unionwell
Model Number: G5W11-EP100-W3U
Lever Type: No Lever Pin Plunger
Micro switches feature a long service life, attributed to their sturdy construction and high-quality materials used in their manufacture. The contactors are made of high-grade materials that ensure smooth and sustained operation even under frequent use.
Micro switches possess excellent versatility, as they can be used in various applications across multiple industries. They are employed in consumer electronics, communication devices, computers, instrumentation, and automation systems, among others. The diverse application base reflects their adaptability and flexible usage.
Rating | W1 | ENEC: 0.1A 48VDC, 0.1A 125/250VAC, 40T85, 5E4, μ
UL: 0.1A 48VDC, 0.1A 125/250VAC, T85 |
W2 | ENEC: 5A 125/250VAC, 5A, 30VDC, 40T85, 5E4, μ
UL: 5A 125/250VAC, T85 |
|
W3 | ENEC: 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, 40T85, μ, 2E4
UL: 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, T85 |
|
Operating Frequency | Electrical | 10~30 times/min |
Mechanical | 60 times/min | |
Insulation Resistance | at 500VDC, 100MΩ Min. | |
Dielectric Strength | Between terminals | AC 1,000V 50-60Hz 1min |
Between terminals and housing | AC 1,500V 50-60Hz 1min | |
Storage Temperature | -40°C~+85°C | |
Storage Humidity | 85%RH Max | |
Protection grade | With terminal | IEC IP67 (Terminal not included) |
With wire | IEC IP67 | |
Electric-shock Safeguard Grade | Class II | |
Life | E-life | 2E4~10E4 cycles (depends on P/NS) |
M-life | over 1000,000 cycles (60cycles/min) | |
Weight | Approx.7g (with terminal and without lever) |
